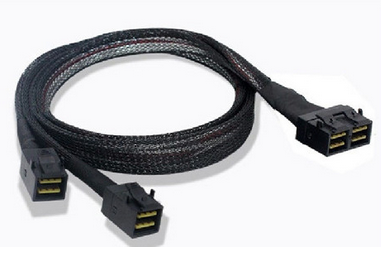

HD MINI SAS 72P to HD MINI SAS SFF-86432
Applications Data/Communications 1.RAID (Redundant Array of Independent Disks ) 2. Workstations 3.Rack-mount server 4.Servers 5.Storage rack Features and Benefits 1.Transmission rate 12 Gbps. 2. Meet SAS3.0 specification. Mechanical Performance Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute. Mating Force: 100 N maximum. Unmating Force: 50 N minimum. Electrical Performance 1. Contact Current Rating 0.5Amperes maximum per pin when mated. 2. Voltage Rating 30VAC per contact when mated or unmated. 3. Contact Resistance 30mohm max. initial, 15mohm maximum after stress test. 4. Dielectric Withstanding Voltage 500 VAC for 1 minute no breakdown. 5. Insulation Resistance 1000 Mohm minimum. Signal Integrity 1. Mated Connector Impedance: 100 ohm±15% 2. Cable Absolute Impedance: 100 ohm±10% 3. Cable Pair Matching: ±5 ohm 4. Common Mode Impedance: 25 to 40 ohms 5. Insertion loss: -6dB maximum up to 4.5Ghz; 11dB maximum up to 9Ghz. 6. Crosstalk: -35 dB up to 6Ghz. Product Environmental Compliance RoHS2.0: RoHS 2.0 Compliant China RoHS: Yes REACH SVHC: Yes |
